機器特點

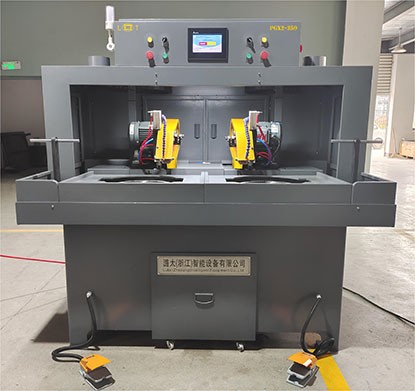

　　◆本機是對圓盤工件進行表面拋光的專用自動化設備。

　　◆兩工位各自單獨控制，互不影響。

　　◆轉盤轉速可在觸摸屏更改。

　　◆砂帶往返行程速度可調。

　　◆一鍵啟動，自動落片和起片。

Machine features

　　1. This machine is a specialized automated equipment for surface polishing of circular workpieces.

　　2. The two workstations are controlled separately and do not affect each other.

　　3. The rotation speed of the turntable can be changed on the touch screen.

　　4. The speed of the sand belt's round trip is adjustable.

　　5. One click start, automatic drop and lift.

技術參數Technical parameter

◆鋸片直徑Blade diameter   φ110-φ305mm

◆工件厚度Workpiece thickness   ≤4mm

◆砂輪轉速Grinding wheel speed   2460r/min

◆砂帶尺寸Belt size   1230*35mm

◆工作氣壓Operating air pressure   ≥0.45MPa

◆電源電壓Supply voltage   AC380V50Hz

◆功    率Power   8KW

◆重    量Weight   1250kg

◆機床尺寸Machine size   1812×1112×1750mm
